Hwashi Auto Shock Absorber Automatic Welding Machine -- TIG Welding Machine
Shock Absorber TIG Welding
Hwashi Auto Shock Absorber Automatic Welding Machine TIG Welding Machine
Detailed Description
Automatic circular seam welding machine adopts argon arc welding machine as the welding power source. The stepping motor drives the welding gun to conduct constant speed movement.The moving speed and length is set through PLC; use pneumatic pressing plate to press to ensure the stability and consistency of welding; the action program of the whole machine is controlled by PLC; use the touch screen to input data.
Applicable area.This machine is applicable to welding of iron, stainless steel and Shock absorber. The thickness of welding work piece could be range from 1mm to 3mm. The length of welding work piece could be customized.
Features
Mainly applied to welding of automobile connecting rod.
Adopt the welding method of main spindle rotating.
Use friction conductive technology. The work piece is fixed while the welding gun conducts automatic rotating.
Maximum work piece length: 1000mm
Maximum work piece outer diameter: 50mm
Welding thickness.0.3-80mm
Welding speed:0.2-6rpm
| Intelligent welding control system | Product display |
| Automatic welding by inputting coordinate data of welding position, welding current and other data. | Products Show |
| Welding Power Source | Jig Tool |
| The work piece needs long arc welding and high requirement to the efficiency. Thus, pulse DC argon arc welding machine is adopted to meet the requirement of fast speed and stable welding. | Adopt machinery clamping locating device. Adopt embedded clamp to locate so as to meet the needs of welding different products. |
SPECIFICATION
| No. | Items | Data | | 1 | TIG Welder Number | 2-3 (as per product drawing) | | 2 | Welding Gun Moving Distance | 18-120mm (as per product drawing) | | 3 | Cylinder Types | 3 (horizontal, vertical, upper clamping) | | 4 | Feeding Conveyor Length | 1200mm | | 5 | Welding Speed | 10mm/sec | |
APPLICATION
This machine widely applied to weld shock absorber, motor damper.
Hwashi Auto Shock Absorber Automatic Welding Machine -- Seam Welding Machine
Features
Seam welding machine is a method that uses a pair of roller electrodes instead of the cylindrical electrodes of spot welding, and the welded workpiece moves between the rollers to produce a sealed weld with a molten core overlapping each other to weld the workpiece together. The weld consists of a single weld joint, which is divided into roll spot welding or gas-tight seam welding according to the different core fusion overlap. Seam welding machine is widely used for thin plate welding of oil drums, tanks, radiators, aircraft and automobile fuel tanks and sealed containers in jet engines, rockets and missiles.
| Intelligent welding control system | High quality super hard copper alloy welding wheel | Shape structure and welding method |
Intelligent Touch Screen Controller
Input and read welding parameters. | Made of excellent material processing, not afraid of high temperature, not afraid of wear and tear, good electrical conductivity. | Design the right machine shape and mold according tothe welding product and extended welding arms. |

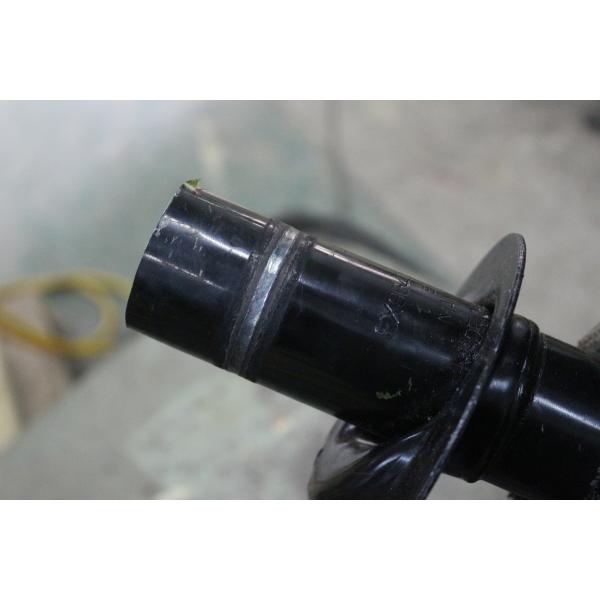

| Welding sample | Welding effect |
Product Description
This machine is designed as double-gun pattern which make it possible to weld two different positions of the work piece at the same time. Applicable to welding of damper of motorcycle and electric car.
This machine widely applied to weld shock absorber of motorcycle and electrocar.
| Model | WL-FS-50K |
| Input Power (V/φ) | 380V 1φ / 380V 3φ |
| Rated Power (KVA) | 50 |
| Applicable Material | Stainless Steel, Carbon steel, Aluminum, Metal |
| Max Short Circuit Current (KA) | 13 |
| Electrode Force (KG) | 800 |
| Electrode Stroke (MM) | 100 |
| Dimension(L*W*H) | 950mm*490mm*1675mm |
| Warranty | 1 years |
